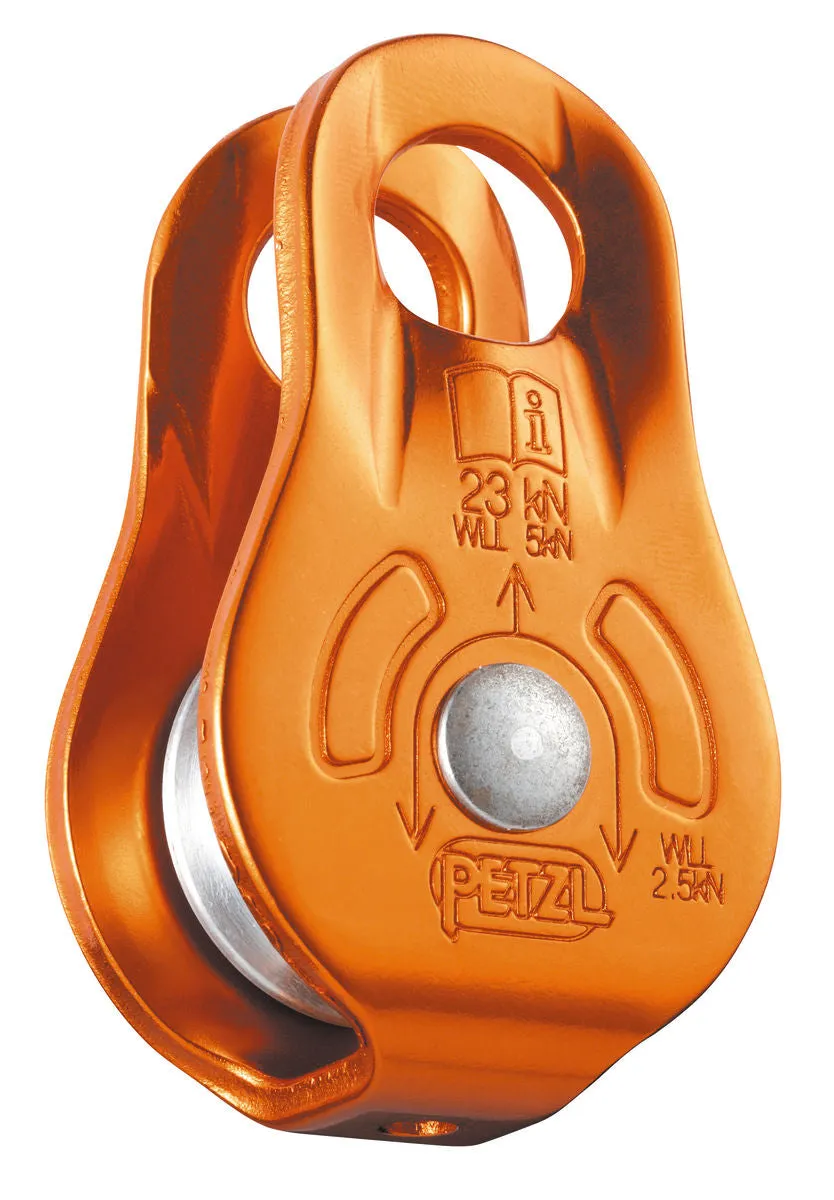

Pulley with fixed side plates
The FIXE pulley is lightweight, compact, and quick to install on the rope. It offers a good balance between weight and performance.
Description
- Lightweight, compact pulley
- Designed for haul systems and deviations
- Fixed side plates allow quick installation and coupling with an ascender
- Sheave mounted on self-lubricating bushings for good efficiency
Specifications
- Material(s): Aluminum side plates, aluminum sheave
- Certification(s): CE EN 12278, UKCA, UIAA
| Weight | 90 g |
| Min. rope diameter | 7 mm |
| Max. rope diameter | 13 mm |
| Sheave type | Self-lubricating bushings |
| Sheave diameter | 21 mm |
| Efficiency | 71 % |
| Working load | 5 kN |
| Working load | On one rope strand: 2.5 kN |
| Breaking strength | 23 kN |
